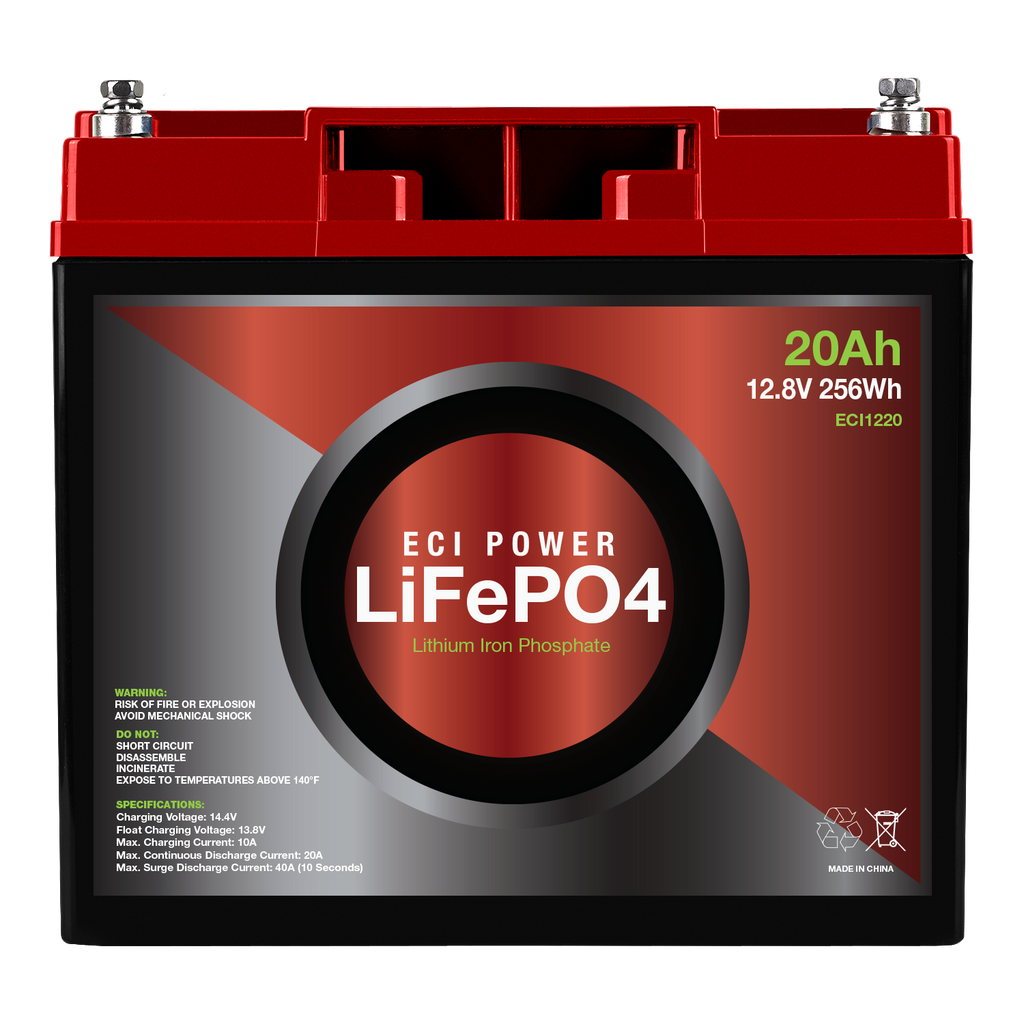

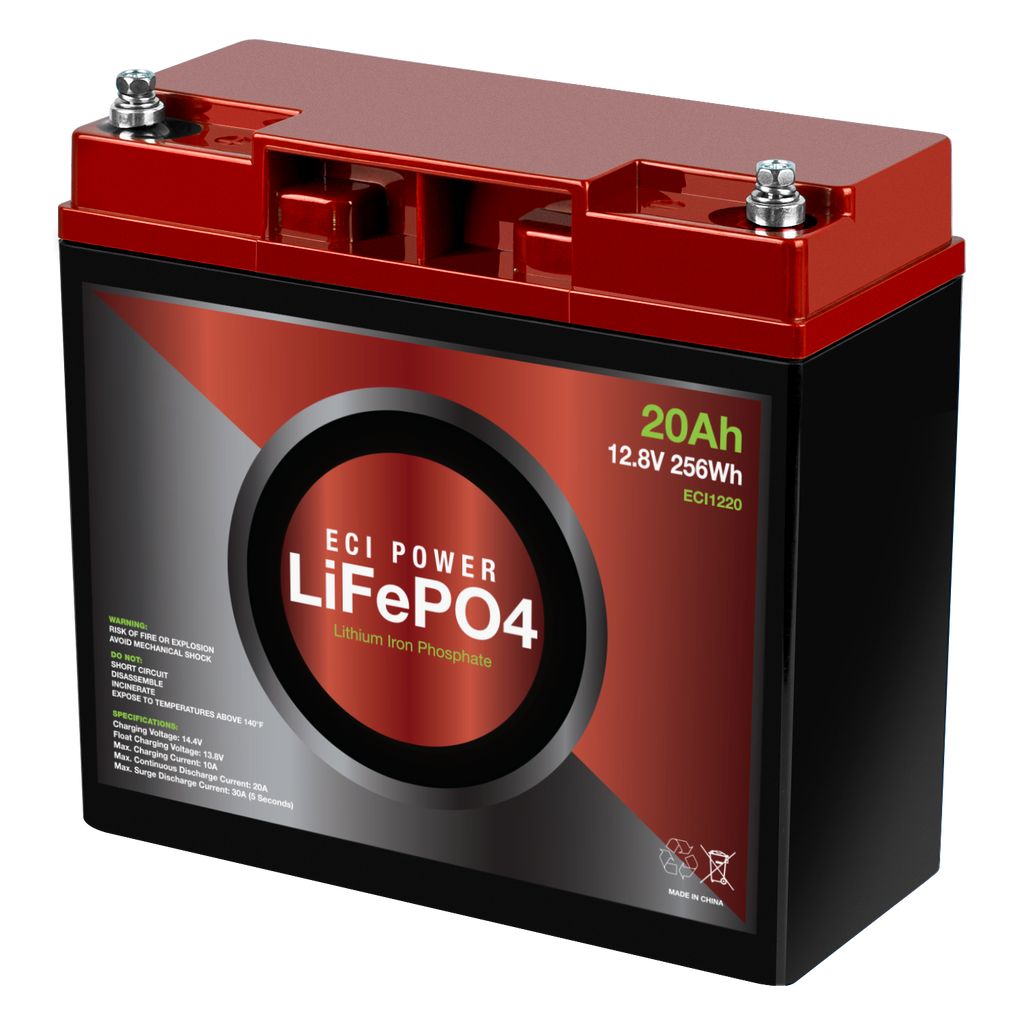

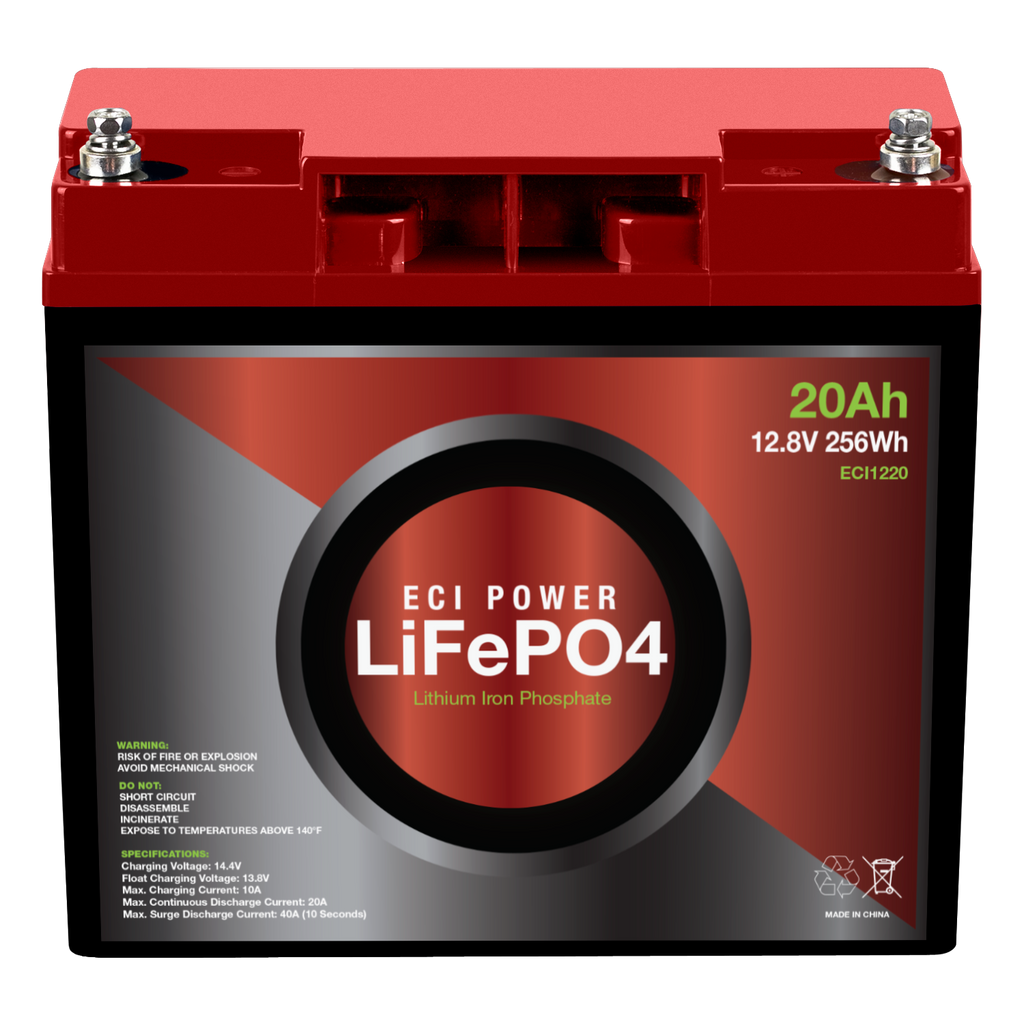

12V 20Ah - LiFePO4 Battery
12V 20Ah - LiFePO4 Battery
12V 20Ah - LiFePO4 Battery
12V 20Ah - LiFePO4 Battery
12V 20Ah - LiFePO4 Battery
12V 20Ah - LiFePO4 Battery
12V 20Ah - LiFePO4 Battery
12V 20Ah - LiFePO4 Battery
12V 20Ah - LiFePO4 Battery
12V 20Ah - LiFePO4 Battery
12V 20Ah - LiFePO4 Battery
12V 20Ah - LiFePO4 Battery
12V 20Ah - LiFePO4 Battery
12V 20Ah - LiFePO4 Battery

12V 20Ah - LiFePO4 Battery

$59.99
Packs
Quantity

Details

Battery Specifications:

  • Nominal Voltage: 12.8v
  • Charging Voltage: 14.4±0.2v
  • Rated Capacity: 20Ah (0.2C, 25°C)

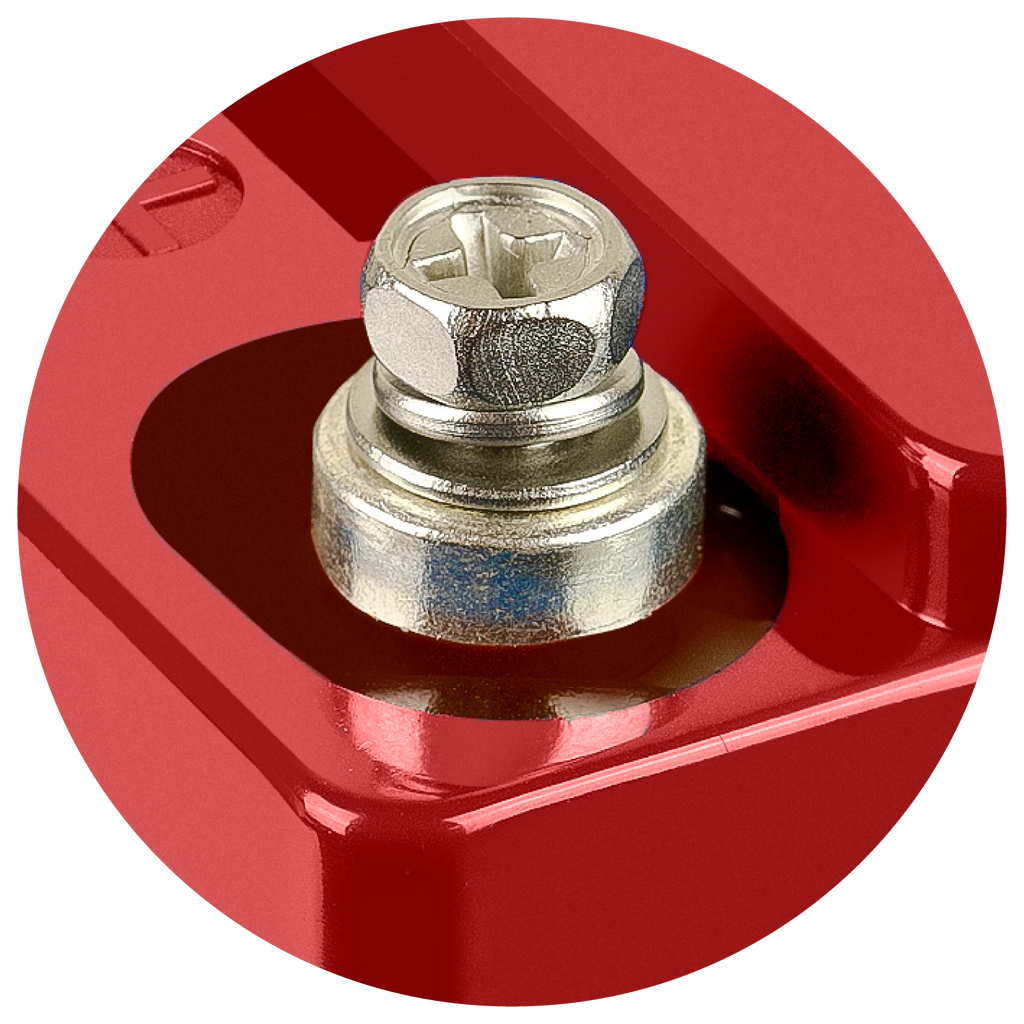

  • Terminal Type: M5
  • Dimensions (L x W x H): 7.1 x 3 x 6.6 (H + Terminal: 6.8) Inch
  • Weight: 5.9lbs
  • Max. Continue Discharge Current: 20A
  • Max. Permanent Discharge Current: 30A 5Sec.
  • Max. Continue Charge Current: 10A
  • Operating Temperature: Discharging: -4°F to 140°F; Charging: 32°F to 140°F

Shipping & Returns

We use Priority and Ground services on all shipments within the contiguous United States unless otherwise noted or an expedited option is selected by the customer. Please allow 1 business day for processing and an additional 1-6 business days for your order to arrive based on your location and products ordered. For more information please refer to our compete Shipping Policy Page.

Reviews
Technical Specifications

Lithium Technology

Flat discharge curve holds above 12V for up to 95% of its capacity usage providing huge boosts in run-time compared to only 50% in Lead Acid

Built-In Safety System

The Battery Management System (BMS) protects our LiFePO4 batteries from overcharge, deep discharge, overloading, overheating, short circuit, and excessive low self-discharge rate. This built-in system can ensure up to 1-year of maintenance-free storage.

Related Products

Technical Specifications

Specification Value
Length 7.1 in
Width 3 in
Height 6.6 in
Height W/ Terminals 6.8 in
Weight 4.75 lbs
Material Plastic
Terminal Type F13 - M5
BCI Group Size -
Battery Composition LiFePO4
Nominal Voltage 12.8V
Charging Voltage 14.4V
Rated Capacity ≥ 20Ah (25°C , 0.2°C)
Storage Duration 12 Months at 77˚F
Continue Charge 10A
Continue Discharge 20A
Permanent Discharge 40A 10Sec.
Life Cycles 2300 With 100% DOD | 3500 with 80% DOD | 6500 with 50% DOD
Operation Temperature Discharge: -4˚F — 140˚F | Charge: 32˚F — 140˚F
Warranty 1 Year
Certification UL1642 at Cell-Level and IEC62133-2
